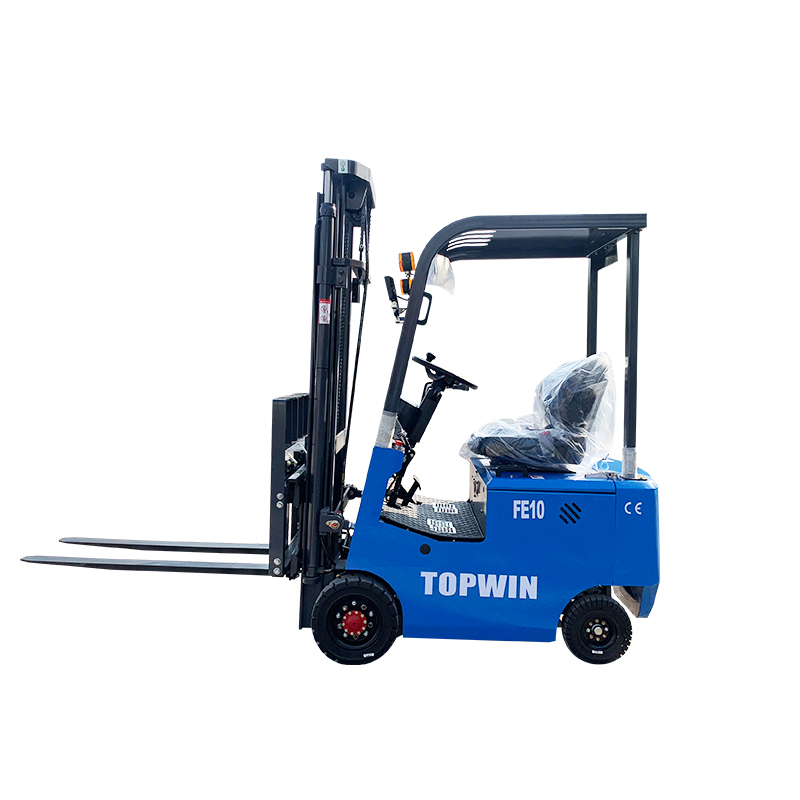

1TON ELECTRIC FORKLIFT
RATED CAPACITY
1000KG
LIFT HEIGHT
3000mm
| Model | FE10 | FE15 | FE20 | ||
| Driving Mode | seated | seated | seated | ||
| Rated Capacity | Q | kg | 1000 | 1500 | 2000 |
| Load Center | C | mm | 500 | 500 | 500 |
| Power Mode | lead-acid battery | lead-acid battery | lead-acid battery | ||
| Wheelbase | L1 | mm | 1335 | 1550 | 1550 |
| Tyre Type | solid tyre | solid tyre | solid tyre | ||
| Wheels Number | 45324 | 45324 | 45324 | ||
| (Front/Rear) | |||||
| Front Track | W3 | mm | 910 | 945 | 945 |
| Rear Track | W2 | mm | 865 | 880 | 880 |
| Tyre Size(Front) | 15X4 1/2-8 | 18x7-10 | 18x7-10 | ||
| Tyre Size(Rear) | 15X4 1/2-8 | 16x6-8 | 16x6-8 | ||
| Front Overhang | L2 | mm | 308 | 325 | 325 |
| Tilt Of The Mast,Forward/Backward | α/β | ° | 45422 | 45422 | 45422 |
| Height,Mast Retraction | H1 | mm | 2017 | 2030 | 2030 |
| Free Lift Height | H3 | mm | / | / | / |
| Maximum Lift Height | H | mm | 3000 | 3000 | 3000 |
| Height,Mast Extended | H2 | mm | 3957 | 4055 | 4055 |
| Overhead Guard Height | H4 | mm | 1860 | 2110 | 2110 |
| Lateral Fork Adjustment(Outside Of Forks) | W5 | mm | 970/200 | 970/200 | 1040/100 |
| Fork Size(Txwxl) | T*W*L4 | mm | 30*100*1070 | 35*100*1070 | 40*100*1070 |
| Overall Length | L＇ | mm | 1980 | 2230 | 2230 |
| (Fork Excluded) | |||||
| Overall Width | W1 | mm | 1020 | 1100 | 1100 |
| Turning Radius | R | mm | 2050 | 2280 | 2280 |
| Ground Clearance Under Mast | H5 | mm | 77 | 88 | 88 |
| Ground Clearance At Center Of Wheelbase(Full Load) | H6 | mm | 100 | 110 | 110 |
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3400 | 3750 | 3750 |
| (Pallet 1000X1000Mm Clearance 200Mm) | |||||
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3650 | 3950 | 3950 |
| (Pallet 1200X1200Mm Clearance 200Mm) | |||||
| Travel Speed,Full Load/Without Load | km/h | 45576 | 45545 | 45545 | |
| Lifting Speed,Full Load/Without Load | mm/s | 220/230 | 200/200 | 180/200 | |
| Lowering Speed,Full Load/Without Load | mm/s | 550 | 450 | 450 | |
| Maximum Grade-Ability,Full Load/Without Load | % | 15/20 | 15/20 | 15/20 | |
| Service Mass(With Battery) | kg | 1570 | 2100 | 2650 | |
| Battery Voltage /Nominal Capacity | V/Ah | 60V/120Ah | 60V/160Ah | 60V/210Ah | |
| Battery Weight | kg | 180 | 207 | 300 | |
| Driving Motor Power-60 Minutes | kW | 5 | 5 | 5 | |
| Lifting Motor Power-15 Minutes | kW | 4.5 | 4.5 | 4.5 | |
| Driving Motor Controlling Mode | MOSFET/PMSM | MOSFET/PMSM | MOSFET/AC | ||
| Lifting Motor Controlling Mode | MOSFET/PMSM | MOSFET/PMSM | MOSFET/AC | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical | Hydraulic/Mechanical | Hydraulic/Mechanical |
