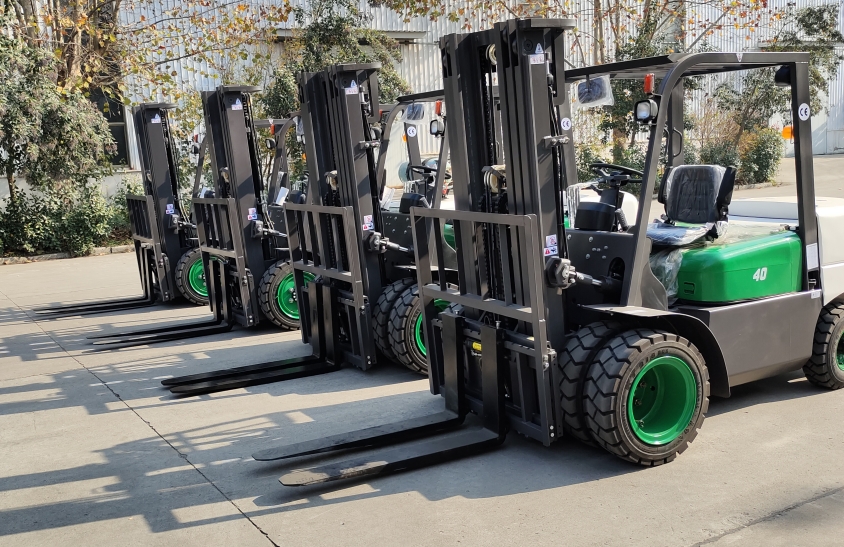

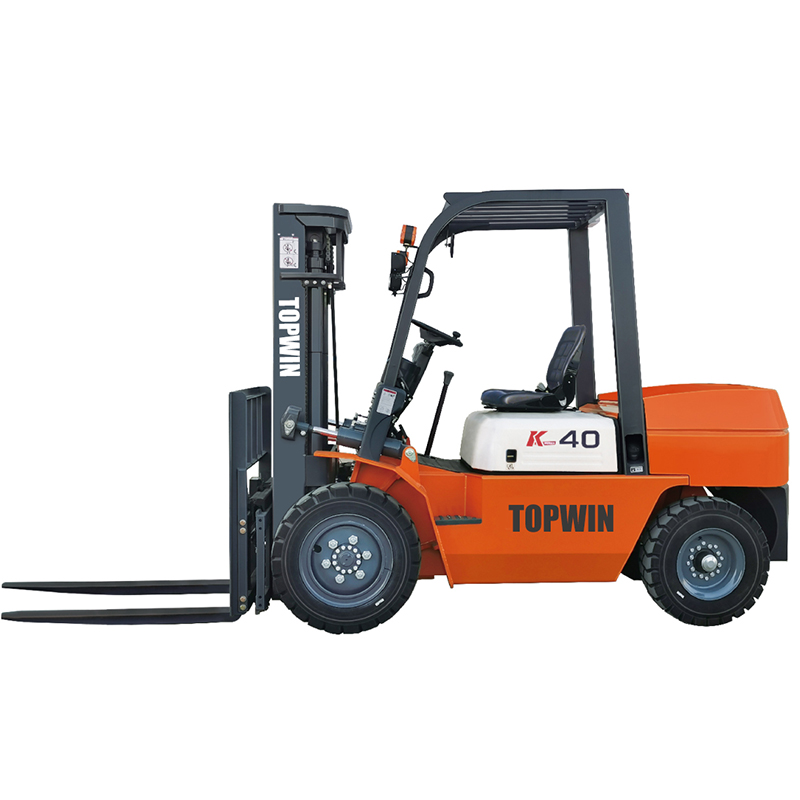

4 TON DIESEL FORKLIFT

RATED CAPACITY
4000KG
LIFT HEIGHT
3000mm

Model	FD40	FD45	FD50S
Rated lifting weight ,kg	4000	4500	5000
Load center ,mm	500	500	500
Power	Diesel	Diesel	Diesel
Max. lifting speed (full load) ,mm∕s	300	300	340
Max. travel speed (full load/unload) ,km/h	18∕20	19∕18	17∕18
Max. traction force (full load/unload), KN	16.5∕11.5	19∕15	27∕17
Grade-ability (full / no load) ,%	15∕20	15∕20	15∕20
H1 lifting height ,mm	3000	3000	3000
Free lifting height ,mm	80	145	150
Mast inclination (α front / β rear), degree	6∕12	6∕12	6∕12
Min. turning radius ,mm	2720	2900	3000
Min. right angle channel ,mm	2320	2350	2750
Min. ground clearance ,mm	135	200	170
A Overall length (including forks) ,mm	4100	4210	4350
B Overall width ,mm	1230	1460	1400
H Overall height (mast retraction) ,mm	2110	2160	2330
H2 Overall height (full extension of mast) ,mm	4270	4285	4265
H3 overhead guard height ,mm	2110	2220	2330
A1 front overhang ,mm	470	515	585
A2 wheelbase ,mm	1900	1900	2150
B1 wheel treat front ,mm	1060	1160	1180
B2 wheel treat rear ,mm	970	1110	1190
Front tyre	250-15	300-15	300-15
Rear tyre	6.50-10	7.00-12	7.00-12
Weight ,kg	4900	5550	6750
B3 fork width,,mm	150	150	150
H4 fork thickness ,mm	45	50	55
fork bracket height ,mm	1225	1195	1275
A3 standard fork length ,mm	1220	1220	1220
Engine	China stage Ⅲ	China stage Ⅲ	China stage Ⅲ
Rated power kW	36.8	48	60
Speed at rated power rpm	2500	2300	2200
Maximum torque Nm	185	250	300
Speed at maximum torque rpm	1800	1800	1800
Transmission	Mechanical	Hydraulic	Mechanical
