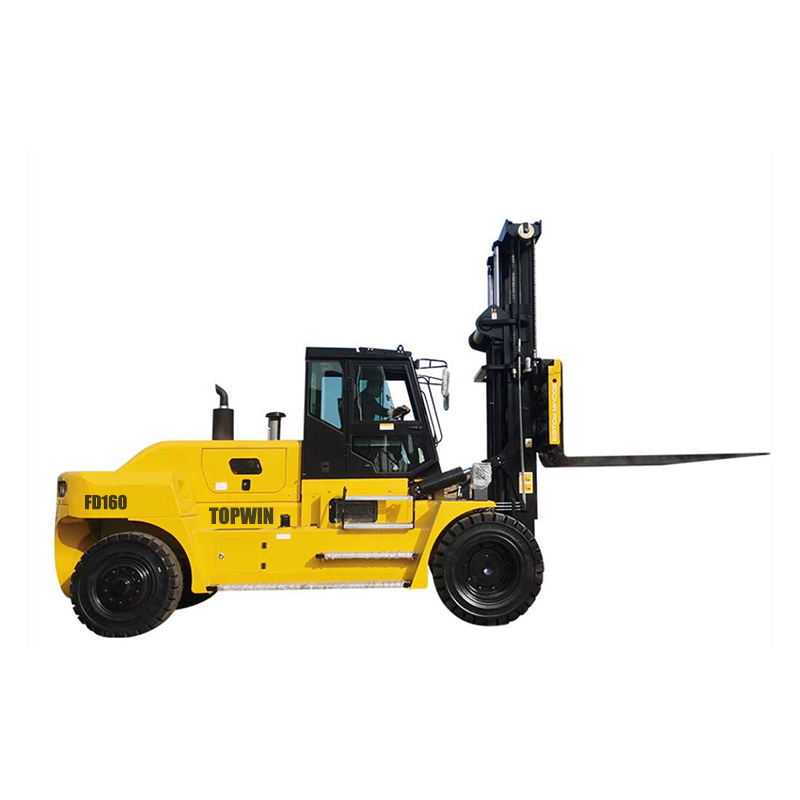

16T DIESEL FORKLIFT

RATED CAPACITY
16000KG
LIFT HEIGHT
3500mm

Description
Inquiry

Items		Unit	FD160S	FD150	FD160
Features	Rated Load	Q（t）	16	15	16
	Load center	c (mm)	600	900	900
	Wheelbase	y(mm)	3300	3800	3800
	Weight	kg	19800	24000	25000
Chassis	Tyre Specs.:Front		12.00-20-18PR	12.00-24-18PR	12.00-24-18PR
	Tyre Specs.:Rear		11.00-20-18PR	12.00-20-18PR	12.00-20-18PR
	Tyres Qty,front/rear(X-drive wheels)		4\2	4\2	4\2
	Wheel tread:Front	b10 (mm)	1740	2060	2060
	Wheel tread:Rear	b11(mm)	2013	2330	2330
Dimension	Mast/carriage tilt angle(front/rear)	Degree（°）	6\12	6\12	6\12
	Mast height(fork lowered)	h1(mm)	3140	3625	3625
	Max.lifting height	h3(mm)	3000	3500	3500
	Mast height(fork raised)	h4(mm)	4640	5375	5375
	Height to head guard(height to cab)	h6(mm)	3040	3365	3365
	Overall length(with forks)	l1(mm)	6355	7640	7640
	Fork front vertical surface to the rear end of the vehicle	l2(mm)	5155	5840	5840
	Overall width	b1/b2(mm)	2400	2750	2750
	Fork dimension	s/e(mm)	120018090	1800X220X100	1800X220X100
	Fork carriage width	b3(mm)	2200	2700	2700
	Mast min ground clearance(with load)	m1(mm)	225	265	265
	Wheelbase center min ground clearance(with load)	m2(mm)	350	325	325
	Min.Turning radius	Wa(mm)	4750	5800	5800
	Travel speed(with load/without load)	km/h	23/26	26/30	26/30
Performance	Max.lifting speed(with load/without load)	mm/s	205/255	250/260	250/260
	Max.Lowering speed(with load/without load)	mm/s	435/285	430/330	430/330
	Traction	kN	90	150	150
	Gradeablity(with load/without load)	％	20/22	20/22	20/21
	Driving brake		Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc
	Engine brand/model	Option one	Yuchai engine	Yuchai engine	Yuchai engine
Engine			YC6J150-T302 6.494L 110KW 2200r/min	YC6J175-T302 6.494L 129KW 2200rpm	YC6J175-T302 6.494L 129KW 2200rpm
		Option two	Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins
			6BT5.9-C130/QSB4.5-C130 4.5L 97KW 2200r/min	6BTAA5.9-C190/ QSB6.7-C190 6.7L 142KW 2200rpm	6BTAA5.9-C190/ QSB6.7-C190 6.7L 142KW 2200rpm
		Cylinder No.	6\4	6	6
Others	Transmission gears(Front/rear)		2\2	2\1	2\1
	Attachments working pressure	Mpa	16	16	16
	Attachments using oil amount	l/min	40	60	60

1、Powerful Lifting: The 16t Forklift provides a sturdy 16-ton lifting capacity, perfect for a variety of heavy-duty coping with tasks.

2、Intelligent Operation: Equipped with an superior working system, the 16t Forklift ensures unique and basic control, bettering security and efficiency.

3、Energy-Efficient: Our 16t Forklift employs energy-saving technology, lowering operational prices whilst helping sustainable practices.

4、Ergonomic Design: Featuring a relaxed cabin and easy manipulate system, the 16t Forklift boosts operator effectivity and reduces fatigue.

5、Comprehensive After-Sales: The 16t Forklift comes with full-size after-sales support, making sure your tools continually performs at its best.

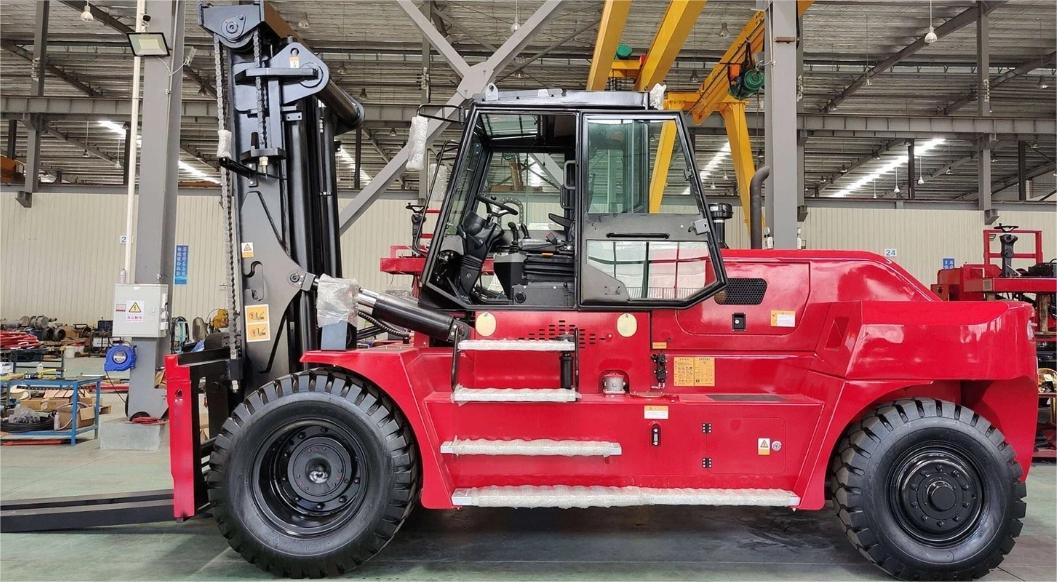

16t fork lift.jpg
