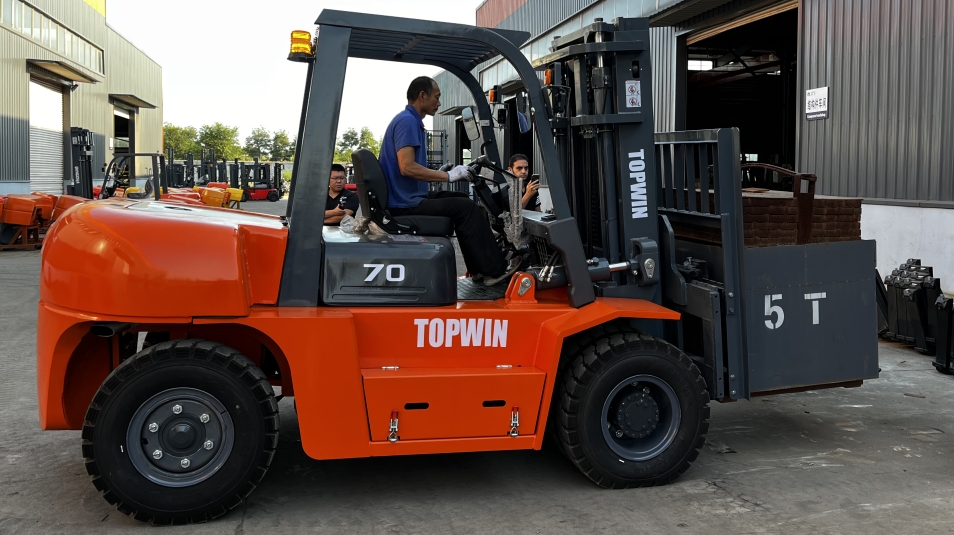

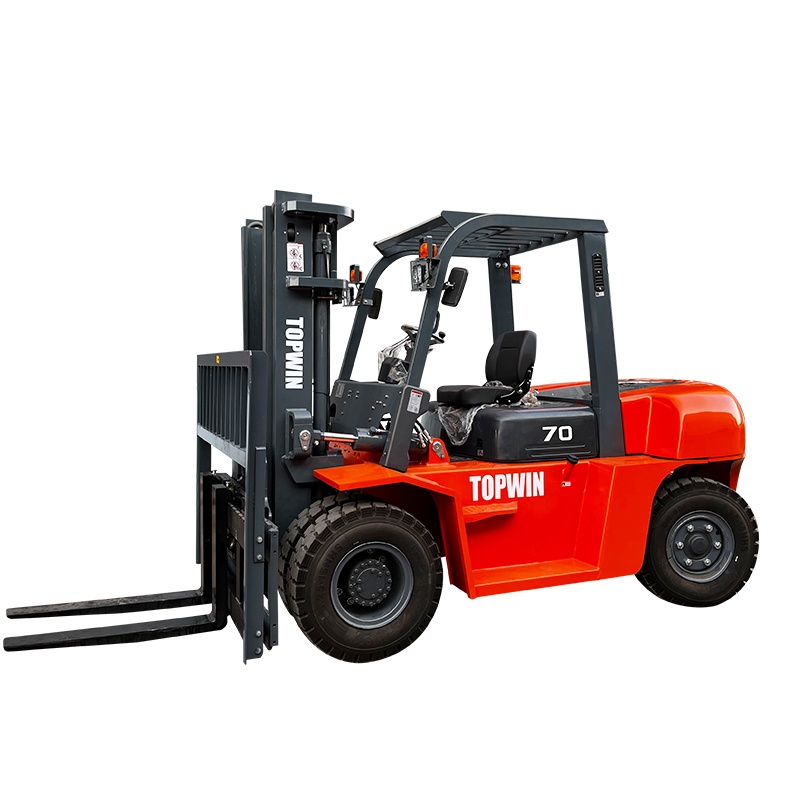

7T DIESEL FORKLIFT

RATED CAPACITY
7000KG
LIFT HEIGHT
3000mm

Description
Inquiry

Model	FD60	FD70	FD80	FD100
Rated lifting weight ,kg	6000	7000	8000	10000
Load center ,mm	600	600	600	600
Power	Diesel	Diesel	Diesel	Diesel
Max. lifting speed (full load) ,mm∕s	470	450	350	310
Max. travel speed (full load/unload) ,km/h	21∕13	21∕13	18∕25	16∕22
Max. traction force (full load/unload), KN	53	54	57	58
Grade-ability (full / no load) ,%	20∕25	20∕25	19∕20	19∕20
H1 lifting height ,mm	3000	3000	3000	3000
Free lifting height ,mm	150	150	150	150
Mast inclination (α front / β rear), degree	6∕12	6∕12	6∕12	6∕12
Min. turning radius ,mm	3430	3450	3700	4000
Min. right angle channel ,mm	3090	3090	3310	3540
Min. ground clearance ,mm	230	230	250	250
A Overall length (including forks) ,mm	4760	4850	5160	5500
B Overall width ,mm	1995	1995	2165	2275
H Overall height (mast retraction) ,mm	2500	2500	2700	2850
H2 Overall height (full extension of mast) ,mm	4420	4420	4375	4300
H3 overhead guard height ,mm	2420	2420	2585	2585
A1 front overhang ,mm	635	610	700	720
A2 wheelbase ,mm	2250	2250	2500	2800
B1 wheel treat front ,mm	1470	1470	1600	1600
B2 wheel treat rear ,mm	1700	1700	1700	1700
Front tyre	8.25-15-14	8.25-15-14	9.00-20-14	9.00-20-14
Rear tyre	8.25-15-14	8.25-15-14	9.00-20-14	9.00-20-14
Weight ,kg	8640	9500	10960	12510
B3 fork width,,mm	150	150	170	175
H4 fork thickness ,mm	60	65	70	80
fork bracket height ,mm	1365	1365	1374	1015
A3 standard fork length ,mm	1220	1220	1220	1220
Engine	China stage Ⅲ	China stage Ⅲ	China stage Ⅲ	China stage Ⅲ
Rated power kW	66	66	92	92
Speed at rated power rpm	2200	2200	2200	2200
Maximum torque Nm	350	350	480	480
Speed at maximum torque rpm	1600	1600	1700	1700
Transmission	Hydraulic	Hydraulic	Hydraulic	Hydraulic

FORK LIFT 7t.jpg

7T DIESEL FORKLIFT
