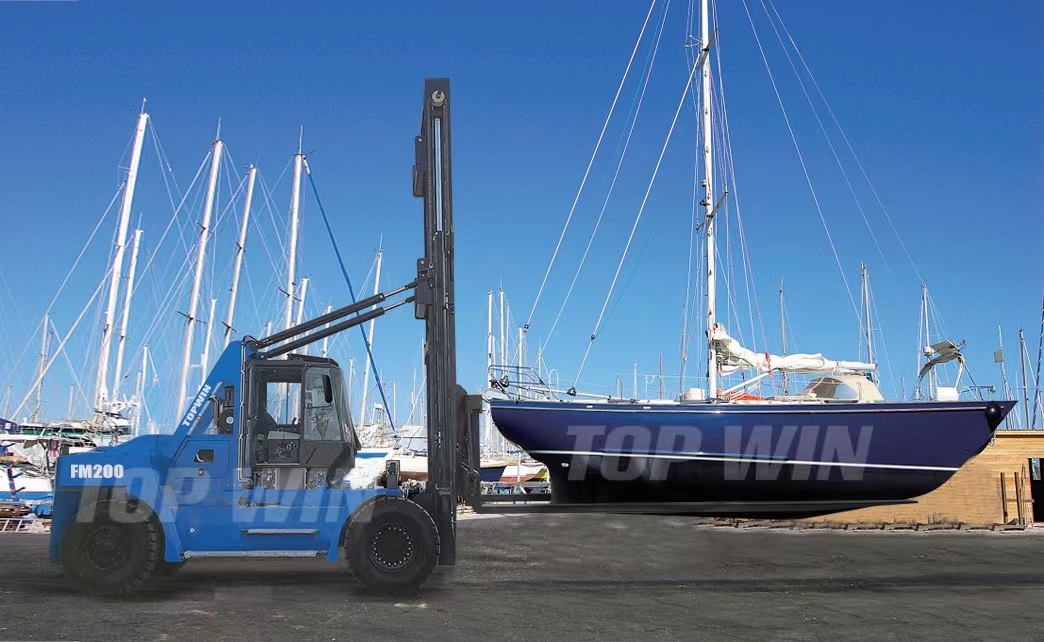

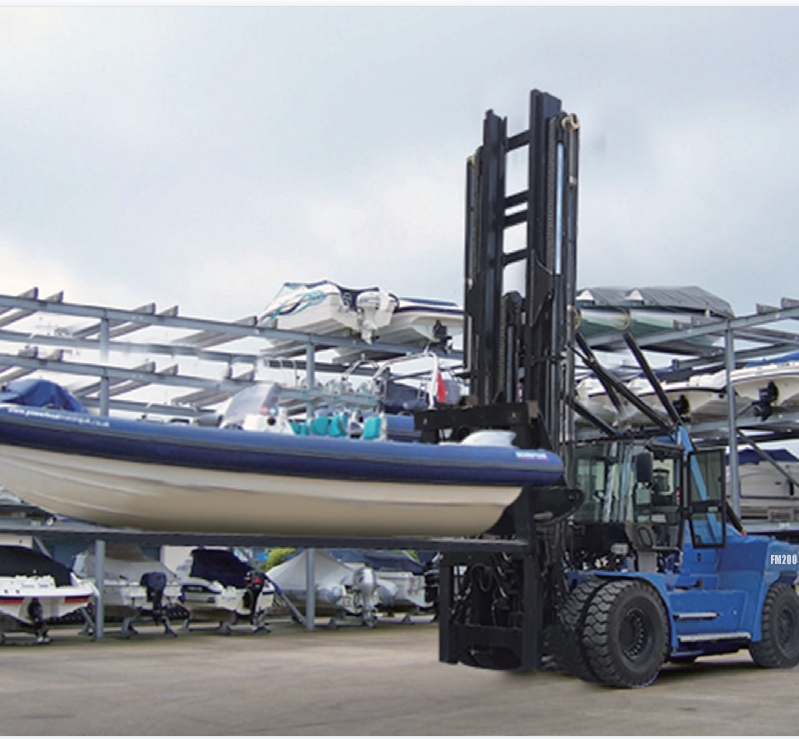

Marine Forklifts Are Used To Dry The Stacked Boats In The Storage Racks And To Decrease The Boats In/Lift Out Of The Water. Topwin Marine Forklift Has a Compact Shape And Magnificent Maneuverability. It Can Be Operated Round Any Facility. It Is Sturdy And Long Lasting Sufficient To Lift/Lower Ships Of More Than a Few Sizes And Weights.

Negative Lift: The Time Period Poor Carry Sounds Contradictory, However It Absolutely Refers To The Capability Of The Mast And Bracket To Decrease The Load Beneath The Forklift Ground. Negative Elevate Is On The Whole Used In The Marine Industry, Permitting The Dock Proprietor To Shortly And Without Difficulty Put The Boat In The Water And Immerse The Fork In The Water To Retrieve The Boat.

Item		Unit	FM200(W200-10-4)	FM250(W250-12-4)	FM250(W250-15-6)
Features	Rated Load/loader center/lifting height	kg/mm/m	7600/4100/<=6m	8700/4300/<=6m	8700/4300/<=6m
Features	Wheelbase	y(mm)	4000	4400	4400
Weight	Weight	kg	41000	43000	47000
Chassis	Tyre Specs.:Front	/	14.00-24-28PR	14.00-24-32PR	14.00-24-32PR
	Tyre Specs.:Rear	/	14.00-24-28PR	14.00-24-32PR	14.00-24-32PR
	Tyres Qty,front/rear(X-drive wheels)	/	4\2	4\2	4\2
	Wheel tread:Front	b10(mm)	2200	2200	2200
	Wheel tread:Rear	b11(mm)	2390	2390	2390
Dimension	Mast/carriage tilt angle(front/rear)	Degree(°)	3\6	3\6	3\6
	Mast height(fork lowering)	h1(mm)	8400	9000	12000
	Max. lifting height	h3(mm)	10000	12000	15000
	Max. Negative Lifting Height	mm	4000	4000	6000
	Height to head guard(height to cab)	h6(mm)	4400	4400	4400
	Overall leight(with forks)	l1(mm)	12800	13700	13700
	Overall width	b1/b2(mm)	3050	3050	3050
	Fork size	s/e(mm)	6500X200X250	7000X200X250	7000X200X250
	Fork carriage width	b3(mm)	3500	3500	3500
	Mast min ground clearance(with load)	m1(mm)	300	300	350
	Wheelbase center min ground clearance(with load)	m2(mm)	400	400	400
	Min.Turning radius	Wa(mm)	6250	6250	6700
	Travel speed(with load/without load)	km/h	26/30	26/30	28/30
Performance	Max.lifting speed(with load/without load)	mm/s	200/200	200/200	200/200
	Max.Lowering speed(with load/without load)	mm/s	280/260	280/260	280/260
	Traction	N	16000	16000	17000
	Gradeablity(with load/without load)	%	20/21	20/21	20/21
	Driving brake*standard	/	Hydraulic clamp disc brake	Hydraulic clamp disc brake	Hydraulic clamp disc brake
	Driving brake*optional	/	wet brake	wet brake	wet brake
Engine	Brand	/	Cummins	Cummins	Cummins
	Model	/	QSL9.3-C220	QSL9.3-C220	QSL9.3-C220
	Rated load/speed	kW/rpm	162/2200	162/2200	162/2200
	Cylinder No.	/	6	6	6
Others	Transmission gears(Front/rear)*standard	/	2\1	2\1	2\1
	Transmission gears(Front/rear)*optional	/	3\3	3\3	3\3
	Attachments working pressure	bar	160	160	160
	Attachments using oil amount	l/min	80	80	80
*The parameters are subject to change without prior notice.

Topwin Yacht Dealing With Forklifts Grant Amazing General Functions, Which Are Very Appropriate For Your Dock And Vessel Dealing With Needs. These General Elements Encompass Superior Rubber Fork Masking System; Intuitive Digital Joystick Control; Luxurious Air Cushion Seat, Etc.
