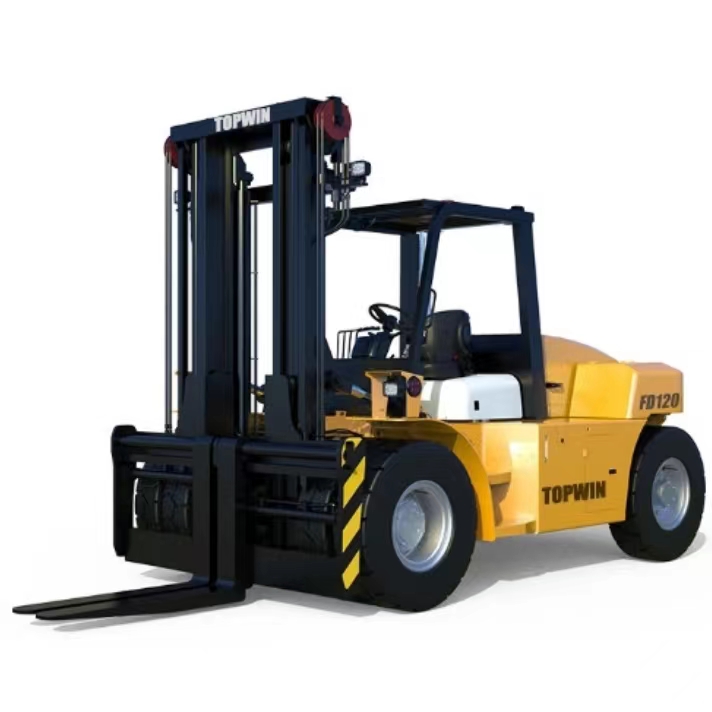

RATED CAPACITY
12000KG
LIFT HEIGHT
3000mm
No | Item | Unit | Parameters | |
1 | Rated lifting capacity | kg | 12000 | |
2 | Overall length | mm | 5770 | |
3 | Overall width | Width(wheel) | mm | 2350 |
4 | Width(frame) | mm | 2350 | |
5 | Min. mast height | mm | 3170 | |
6 | Cab height | mm | 2640 | |
7 | Overall high | Max. mast height | mm | 4680 |
8 | Wheelbase | mm | 3000 | |
9 | Front overhang | mm | 730 | |
10 | Track(front) | mm | 1724 | |
11 | Track(rear) | mm | 1850 | |
12 | Min. ground | Under mast(unloaded/rated load) | mm | 260 |
13 | clearance | Middle of truck(unloaded/rated load) | mm | 300 |
14 | Max. lifting height | mm | 3000 | |
15 | Mast tilting(forwards/backwards) | (°) | 45455 | |
16 | Dead weight | kg | 14500 | |
17 | Max. lifting speed(unloaded) | mm/s | 400 | |
18 | Max. lifting speed(rated load) | mm/s | 350 | |
19 | Max. lowering speed(unloaded) | mm/s | 420 | |
20 | Max. lowering speed(rated load) | mm/s | 420 | |
21 | Min. turning radius | mm | 4250 | |
22 | Travelling speed(unloaded) | km/h | 28 | |
23 | Travelling speed(rated load) | km/h | 26 | |
24 | Max.grade-ability | % | 25 | |
25 | Max. drawbar pull(rated load) | kN | 93 |
