RATED CAPACITY
3000KG
LIFT HEIGHT
8000mm

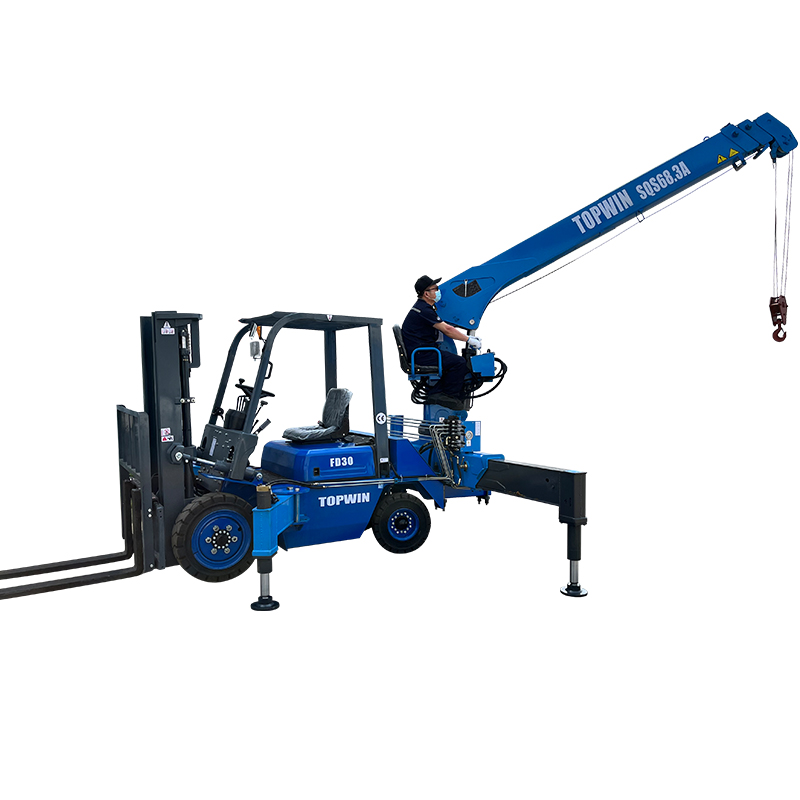

Model | FD30 |
Rated lifting weight ,kg | 3000 |
Load center ,mm | 500 |
Power | Diesel |
Max. lifting speed (full load) ,mm∕s | 505/475 |
Max. travel speed (full load/unload) ,km/h | 18∕20 |
Max. traction force (full load/unload), KN | 15.5∕10.5 |
Grade-ability (full / no load) ,% | 15∕20 |
H1 lifting height ,mm | 3000 |
Free lifting height ,mm | 80 |
Mast inclination (α front / β rear), degree | 6∕12 |
Min. turning radius ,mm | 2530 |
Min. right angle channel ,mm | 2110 |
Min. ground clearance ,mm | 135 |
A Overall length (including forks) ,mm | 3970 |
B Overall width ,mm | 1230 |
H Overall height (mast retraction) ,mm | 2110 |
H2 Overall height (full extension of mast) ,mm | 4270 |
H3 overhead guard height ,mm | 2110 |
A1 front overhang ,mm | 465 |
A2 wheelbase ,mm | 1775 |
B1 wheel treat front ,mm | 1000 |
B2 wheel treat rear ,mm | 970 |
Front tyre | 28×9-15 |
Rear tyre | 6.50-10 |
Weight ,kg | 4250/4290 |
B3 fork width,,mm | 122 |
H4 fork thickness ,mm | 45 |
fork bracket height ,mm | 1225 |
A3 standard fork length ,mm | 1220 |
Engine | China stage Ⅲ |
Rated power kW | 36.8 |
Speed at rated power rpm | 2500 |
Maximum torque Nm | 157 |
Speed at maximum torque rpm | 1800 |
Transmission | Automatic |
1,Versatile Lifting Solutions: These Machines Provide a Vary Of Lifting Solutions, From The Effective Crawler Cranes Best For Large-Scale Building Initiatives To The Compact But Succesful Mini Crawler Cranes And Forklifts With Crane Booms, Appropriate For Smaller Areas And Various Tasks.
2,Enhanced Mobility And Stability: The Crawler Crane And Mini Crawler Crane Characteristic Tracks Rather Of Wheels, Imparting Top Of The Line Balance And Mobility On Special Terrains, Making Them Best For Various Building Environments.
3,Innovative Forklift-Crane Hybrid Design: The Forklift With Crane Growth Combines The Versatility Of a Forklift With The Lifting Functionality Of a Crane, Imparting a Special Answer For Managing And Maneuvering Heavy Masses In Restrained Spaces.
4,High-Capacity Lifting: The Three Ton Mini Crawler Crane Exemplifies Energy In a Compact Design, Turning In The Strength To Carry Full-Size Masses Whilst Retaining The Agility Of a Smaller-Sized Crane, Best For Each Indoor And Outside Projects.
5,Advanced Safety Features: All These Machines Are Geared Up With Superior Security Features, Which Includes Load Administration Structures And Balance Control, To Make Sure The Protection Of Operators And Workers, Mainly In Difficult And Variable Work Conditions.
