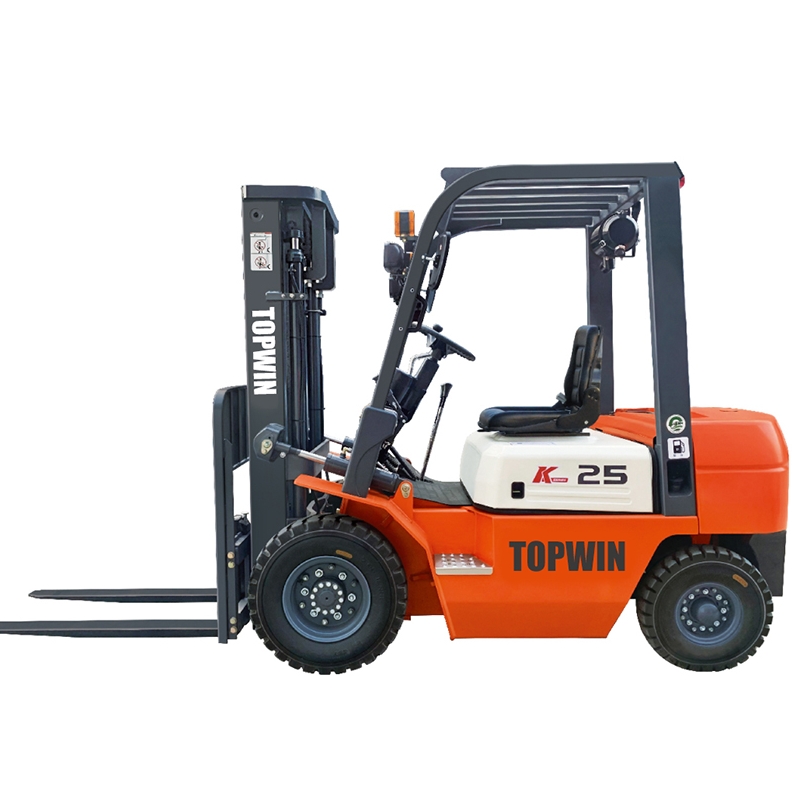

2.5 T DIESEL FORKLIFT

NAME
2.5 TON DIESEL FORKLIFT
RATED CAPACITY
2500KG
LIFT HEIGHT
3000mm

Model	FD25
Rated lifting weight ,kg	2500
Load center ,mm	500
Power	Diesel
Max. lifting speed (full load) ,mm∕s	400
Max. travel speed (full load/unload) ,km/h	17∕19
Max. traction force (full load/unload), KN	15∕10
Grade-ability (full / no load) ,%	15∕20
H1 lifting height ,mm	3000
Free lifting height ,mm	60
Mast inclination (α front / β rear), degree	6∕12
Min. turning radius ,mm	2450
Min. right angle channel ,mm	2050
Min. ground clearance ,mm	110
A Overall length (including forks) ,mm	3605
B Overall width ,mm	1160
H Overall height (mast retraction) ,mm	2095
H2 Overall height (full extension of mast) ,mm	4080
H3 overhead guard height ,mm	2095
A1 front overhang ,mm	451
A2 wheelbase ,mm	1640
B1 wheel treat front ,mm	970
B2 wheel treat rear ,mm	970
Front tyre	7.00-12
Rear tyre	6.00-9
Weight ,kg	3600
B3 fork width,,mm	122
H4 fork thickness ,mm	40
fork bracket height ,mm	1000
A3 standard fork length ,mm	1070
Engine	China stage Ⅲ
Rated power kW	36.8
Speed at rated power rpm	2500
Maximum torque Nm	157
Speed at maximum torque rpm	1800
Transmission	Mechanical
