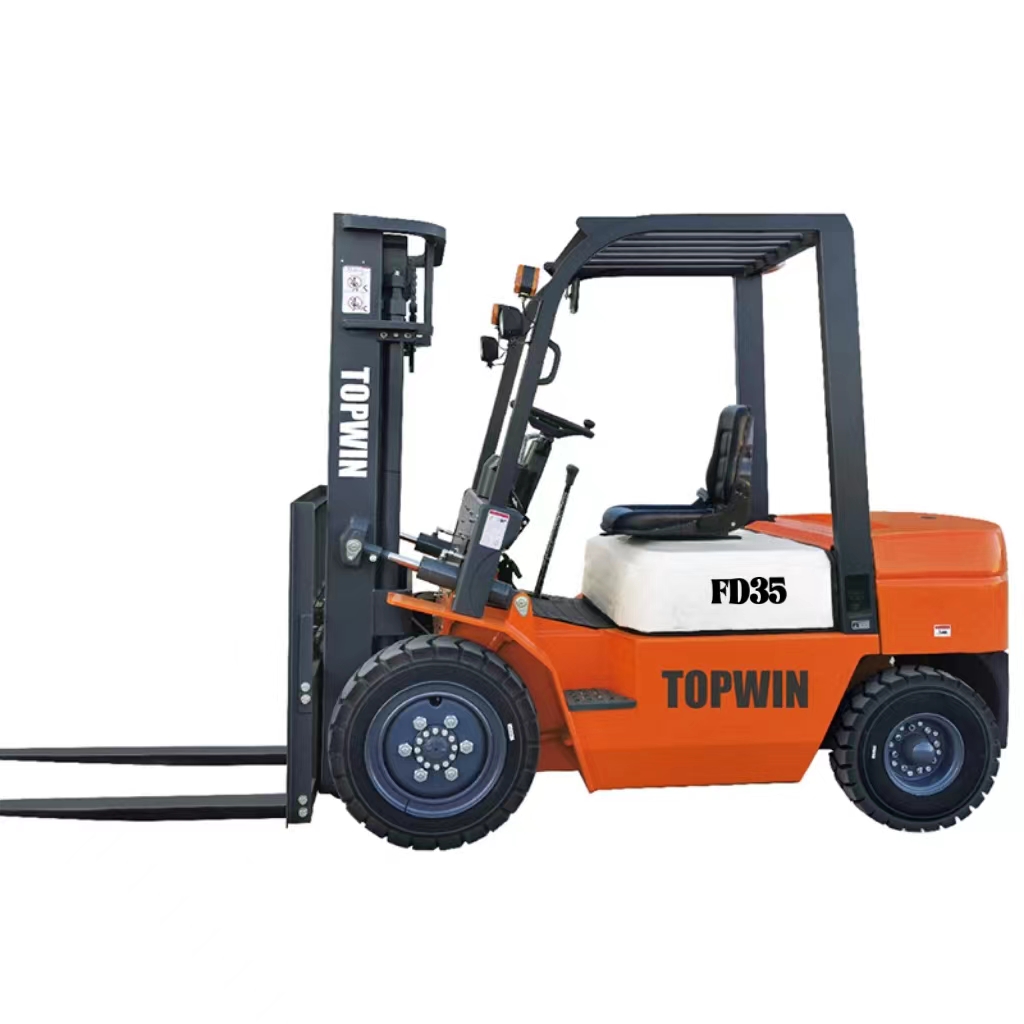

3.5T DIESEL FORKLIFT
RATED CAPACITY
3500KG
LIFT HEIGHT
3000mm
| Model | FD35 | FD40 | FD45 | FD50S |
| Rated lifting weight ,kg | 3500 | 4000 | 4500 | 5000 |
| Load center ,mm | 500 | 500 | 500 | 500 |
| Power | Diesel | Diesel | Diesel | Diesel |
| Max. lifting speed (full load) ,mm∕s | 505/450 | 300 | 300 | 340 |
| Max. travel speed (full load/unload) ,km/h | 17∕19 | 18∕20 | 19∕18 | 17∕18 |
| Max. traction force (full load/unload), KN | 16∕11 | 16.5∕11.5 | 19∕15 | 27∕17 |
| Grade-ability (full / no load) ,% | 15∕20 | 15∕20 | 15∕20 | 15∕20 |
| H1 lifting height ,mm | 3000 | 3000 | 3000 | 3000 |
| Free lifting height ,mm | 80 | 80 | 145 | 150 |
| Mast inclination (α front / β rear), degree | 6∕12 | 6∕12 | 6∕12 | 6∕12 |
| Min. turning radius ,mm | 2540 | 2720 | 2900 | 3000 |
| Min. right angle channel ,mm | 2110 | 2320 | 2350 | 2750 |
| Min. ground clearance ,mm | 135 | 135 | 200 | 170 |
| A Overall length (including forks) ,mm | 4000 | 4100 | 4210 | 4350 |
| B Overall width ,mm | 1230 | 1230 | 1460 | 1400 |
| H Overall height (mast retraction) ,mm | 2110 | 2110 | 2160 | 2330 |
| H2 Overall height (full extension of mast) ,mm | 4270 | 4270 | 4285 | 4265 |
| H3 overhead guard height ,mm | 2110 | 2110 | 2220 | 2330 |
| A1 front overhang ,mm | 465 | 470 | 515 | 585 |
| A2 wheelbase ,mm | 1775 | 1900 | 1900 | 2150 |
| B1 wheel treat front ,mm | 1000 | 1060 | 1160 | 1180 |
| B2 wheel treat rear ,mm | 970 | 970 | 1110 | 1190 |
| Front tyre | 28×9-15 | 250-15 | 300-15 | 300-15 |
| Rear tyre | 6.50-10 | 6.50-10 | 7.00-12 | 7.00-12 |
| Weight ,kg | 4660/4700 | 4900 | 5550 | 6750 |
| B3 fork width,,mm | 122 | 150 | 150 | 150 |
| H4 fork thickness ,mm | 45 | 45 | 50 | 55 |
| fork bracket height ,mm | 1225 | 1225 | 1195 | 1275 |
| A3 standard fork length ,mm | 1220 | 1220 | 1220 | 1220 |
| Engine | China stage Ⅲ | China stage Ⅲ | China stage Ⅲ | China stage Ⅲ |
| Rated power kW | 36.8 | 36.8 | 48 | 60 |
| Speed at rated power rpm | 2500 | 2500 | 2300 | 2200 |
| Maximum torque Nm | 157 | 185 | 250 | 300 |
| Speed at maximum torque rpm | 1800 | 1800 | 1800 | 1800 |
| Transmission | Mechanical | Mechanical | Hydraulic | Mechanical |
