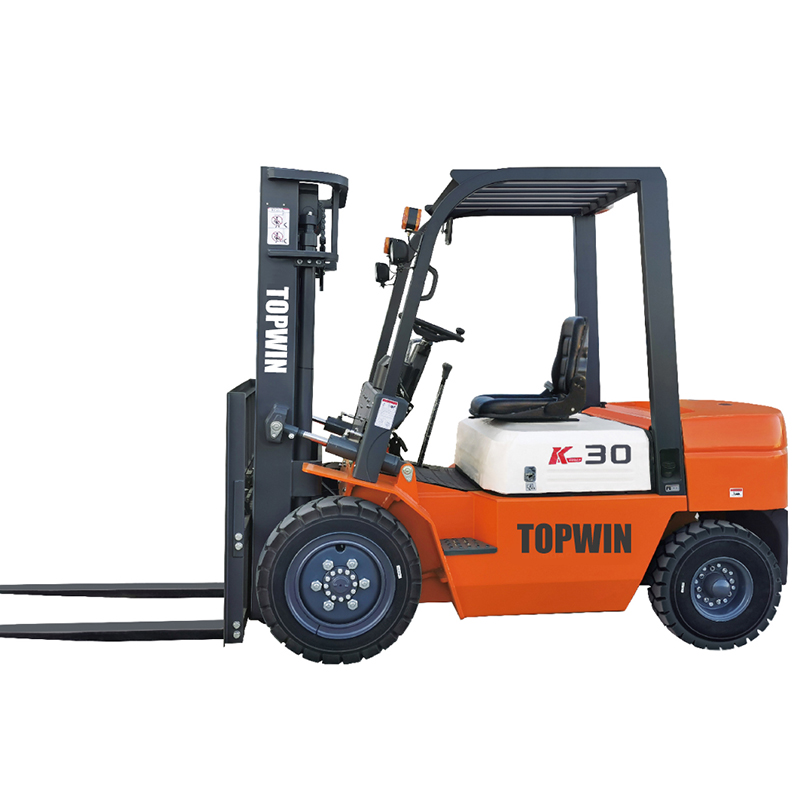

3 TON DIESEL FORKLIFT

RATED CAPACITY
3000KG
LIFT HEIGHT
3000mm

Model	FD30
Rated lifting weight ,kg	3000
Load center ,mm	500
Power	Diesel
Max. lifting speed (full load) ,mm∕s	505/475
Max. travel speed (full load/unload) ,km/h	18∕20
Max. traction force (full load/unload), KN	15.5∕10.5
Grade-ability (full / no load) ,%	15∕20
H1 lifting height ,mm	3000
Free lifting height ,mm	80
Mast inclination (α front / β rear), degree	6∕12
Min. turning radius ,mm	2530
Min. right angle channel ,mm	2110
Min. ground clearance ,mm	135
A Overall length (including forks) ,mm	3970
B Overall width ,mm	1230
H Overall height (mast retraction) ,mm	2110
H2 Overall height (full extension of mast) ,mm	4270
H3 overhead guard height ,mm	2110
A1 front overhang ,mm	465
A2 wheelbase ,mm	1775
B1 wheel treat front ,mm	1000
B2 wheel treat rear ,mm	970
Front tyre	28×9-15
Rear tyre	6.50-10
Weight ,kg	4250/4290
B3 fork width,,mm	122
H4 fork thickness ,mm	45
fork bracket height ,mm	1225
A3 standard fork length ,mm	1220
Engine	China stage Ⅲ
Rated power kW	36.8
Speed at rated power rpm	2500
Maximum torque Nm	157
Speed at maximum torque rpm	1800
Transmission	Mechanical
